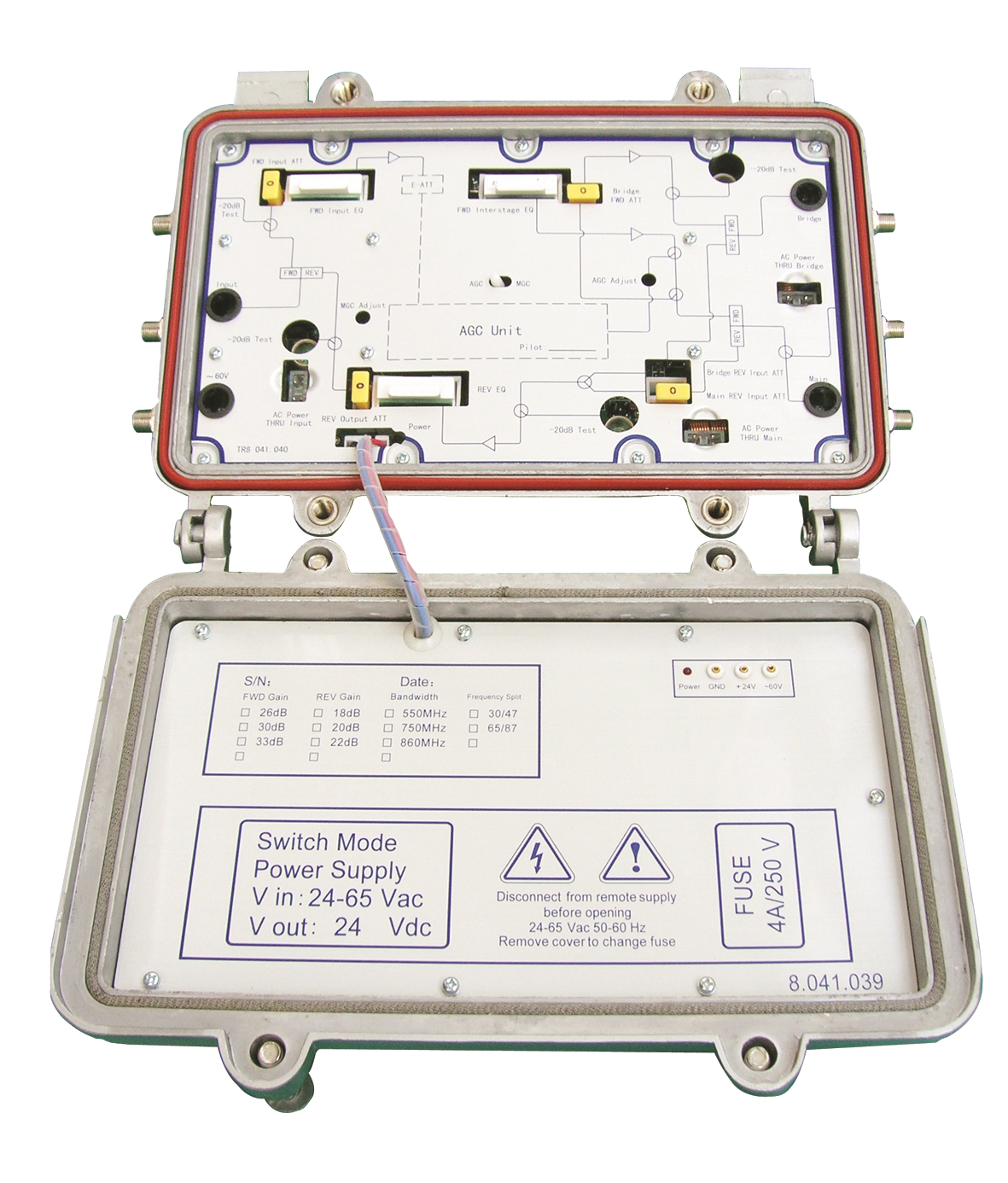

TGM100D AGC BI-DIRECTIONAL AMPLIFIER
750MHz or 862MHz bandwidth,Bi-directional transmission ...
TGM100D AGC BI-DIRECTIONAL AMPLIFIER
|
Item |
Unit |
Description |
Remark |
||
|
Forward |
Reverse |
||||
|
Bandwidth |
MHz |
47/87~750/862 |
5~30/65 |
||
|
Technology |
Power-Double or GaAs |
Push-Pull |
|||
|
Flatness |
dB |
±0.75 |
±0.75 |
||
|
RF Return Loss |
dB |
≥16 |
≥15 |
||
|
AC Pass through Current |
A |
10 |
|||
|
AC Hum |
dB |
≥65 |
≥65 |
||
|
DC Current（24V） |
A |
1.1 |
0.2 |
||
| Test Point |
dB |
-20±0.5 |
-20±0.5 |
||
|
Recommended Input Level |
dBuV |
72 |
>72 | ||
|
Full Gain (min) |
dBuV |
Main output 35 |
20/25 |
1) Forward Gain is tested under the amplifier be adjusted correctly 2) Reverse Gain do not include the loss of reverse mixer, and Gain can be changed by different reverse amplifier module. |
|
|
Bridger output > 40 |
|||||
|
Output level |
dBuV |
>112 |
9dB tilt, 42ch, EN50083, CTB,CSO≤-60dB |
||
|
Slope |
dB |
9 | 0 | ||
|
Noise Figure |
dB |
≤8（0dB Banlance） |
≤8（0dB Banlance） |
||
|
Delay |
ns |
≤10 |
5~30≤30 |
5~65≤20 |
|
|
Surge Protection Voltage |
KV |
5 |
|||
|
Distortion |
59 PAL |
3 PAL CW |
|||
|
C/CTB C/XM C/CSO |
dB dB dB |
≥78 ≥75 ≥75 |
≥88 ≥80 ≥82 |
Under the recommended RF input level and amplifier gain |
|
|
Item |
Unit |
Description |
Remark |
|
Input Voltage |
V |
AC 50Hz 40~90 |
|
|
Output Voltage |
V |
DC +24V |
|
|
Output DC Current |
A |
+24V：1.5A Max, |
|
|
Work Temperature |
℃ |
-40℃~+60℃ |
